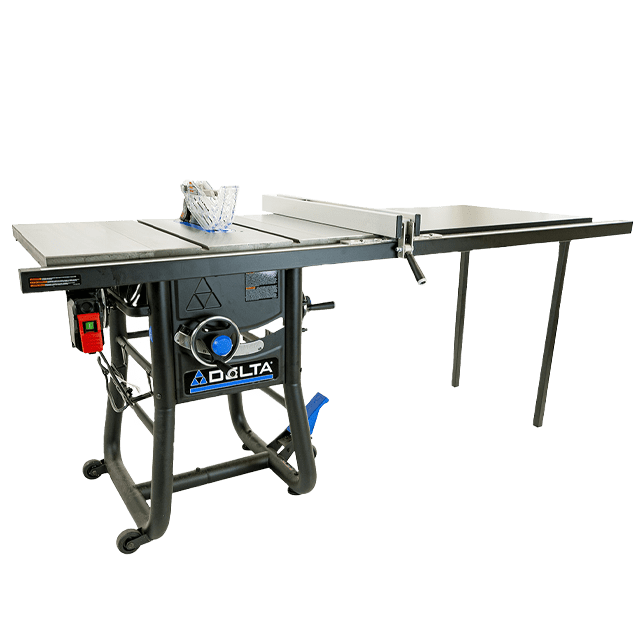

36-5152T2 | 10 in. Contractor Table Saw

Features Powerful Contractor Grade motor easily handles hardwoods 52 Inch Rip Capacity handles large stock Smooth and dependable adjustable belt drive table saw Cast iron table top with 2 cast iron extension wings Legendary Biesemeyer style fence system allows for precision cuts every time and has a special design allowing you to cut small pieces of stock Stacked dado capacity Unique tubular stand for maximum support and stability Specs Depth of Cut at 90º: 3-1/8 in. (79.36 mm) Depth of Cut at 45º: 2-1/4 in. (57.2 mm) Rip Right of Blade: 52 in. (1320.8 mm) Rip Left of Blade: 15 in. (381 mm) Motor: 15 Amp Induction Motor, 1 PH, 60 Hz RPM : 3450 RPM Arbor: 5/8 in. (15.88 mm) Blade Tilt: 45º Left Dado Capacity: 13/16 in. (20.64 mm) X 8 in. (203 mm) stacked dado Dust Port Size: Fit 2.5 in. (63.5 mm) Hose (With 4 in. (102 mm) ADAPTER) Table Size: 20 in. X 27 in. (40 in. X 27 in. with WINGS and 76.5 in. wide with extension board) Length: 84.75 in. (2,152.65 mm) Depth: 40.16 in. (1,020 mm) Height: 42.91 in. (1,089.91 mm) Weight: 269 lbs. Net (122 kg) Sold at   View the Warranty 5 Year Warranty Download Owner's ManualDownload Service Parts List
